Phosphotidylinositol 4,5-Bisphosphate Signals Underlie Receptor-Specific Gq/11-Mediated Modulation of N-Type Ca2+ Channels

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

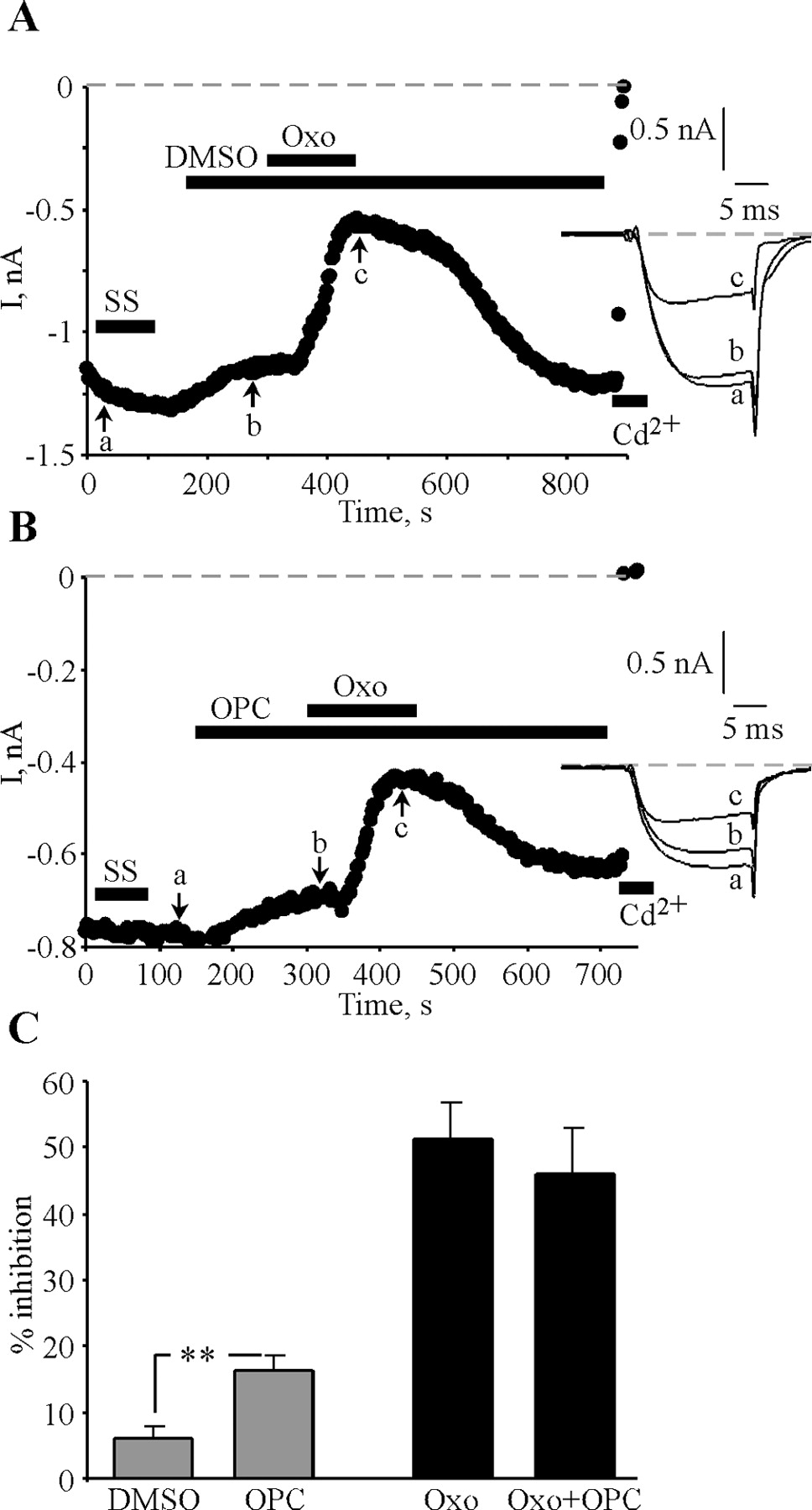

  Figure 6.
Figure 6.

PLA2 is not required for muscarinic modulation of ICa. SCG neurons were treated overnight with PTX and studied in perforated-patch configuration. Voltage protocols are as in Figure 2, and applications of 0.1% DMSO, OPC (10 μm), oxo (10 μm), or CdCl2 (Cd2+; 100 μm) are indicated by bars. A, Vehicle control; B, OPC. C, Bars show the inhibition by oxo in control cells or in those treated with OPC. **p ≤ 0.01.

  1. The Journal of Neuroscience vol. 24 no. 48 10980-10992
