Functional Asymmetries in Visual Pathways Carrying S-Cone Signals in Macaque

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 7.
Figure 7.

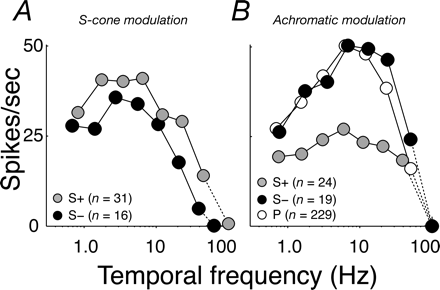

Temporal frequency tuning of S+ and S− cells. A, Average (see Materials and Methods) temporal frequency tuning of S+ (gray circles) and S− cells (black circles) for S-cone isolating modulation. B, Same as A but for achromatic gratings. The average temporal frequency tuning of P-cells (open circles) for achromatic gratings is shown for comparison. Error bars in the x and y (in most cases, smaller than the data point) directions report SEMs.

  1. The Journal of Neuroscience vol. 28 no. 15 4078-4087
