Ankyrin Repeat-Rich Membrane Spanning Protein (Kidins220) Is Required for Neurotrophin and Ephrin Receptor-Dependent Dendrite Development

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

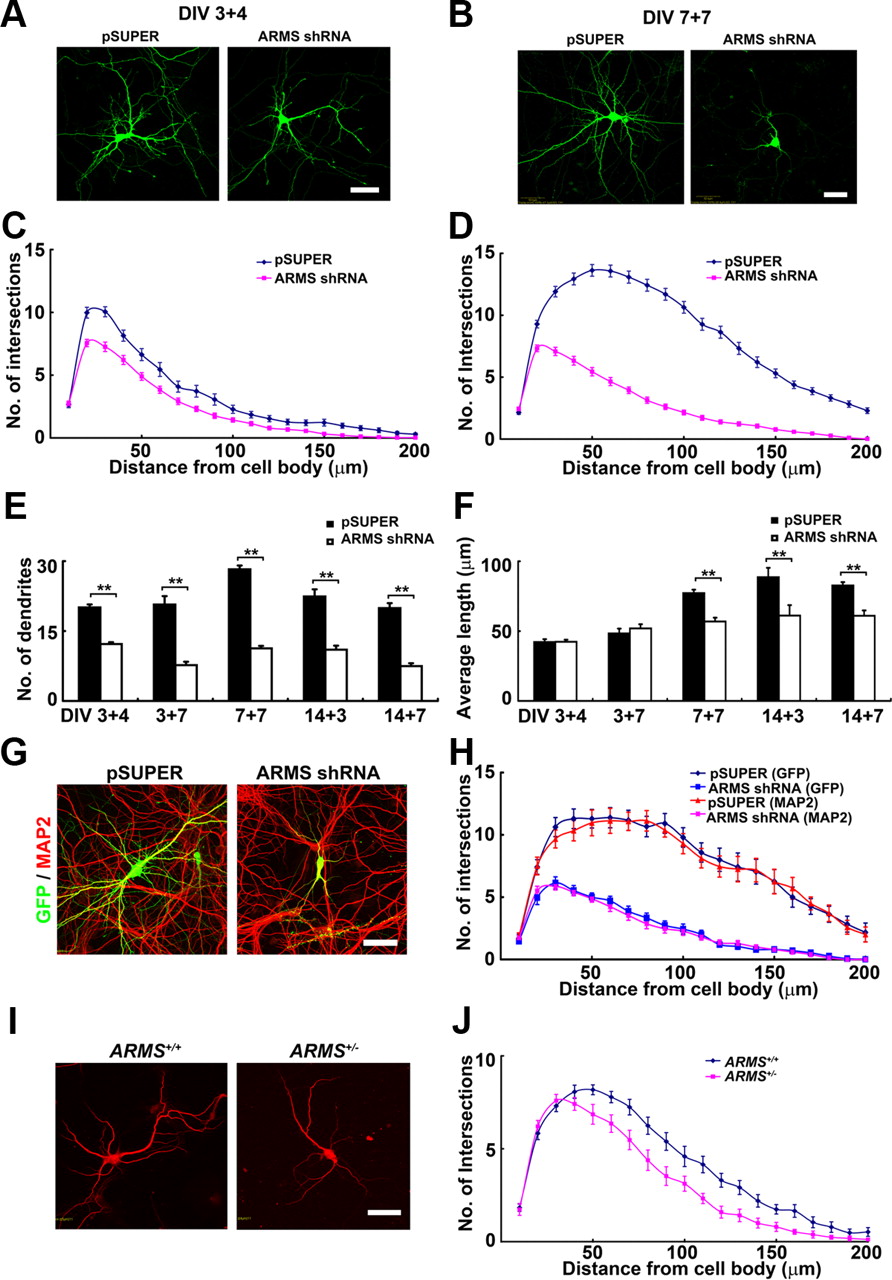

Figure 2.
Figure 2.

ARMS/Kidins220 is required for dendrite development in hippocampal neurons. A, Hippocampal neurons were transfected with pSUPER vector and ARMS shRNA at 3 DIV, and neuronal morphology was examined at 7 DIV (DIV 3 + 4). Scale bar, 50 μm. B, ARMS/Kidins220 was knocked down at 7 DIV, and the morphology of dendritic trees was investigated at 14 DIV (DIV 7 + 7). Scale bar, 50 μm. C, D, Sholl analysis of neurons transfected with pSUPER vector and ARMS shRNA shown in A and B, respectively. E, F, Measurement of dendrite number and length of ARMS/Kidins220 knock-down neurons at different stages. **p < 0.005, Student's t test. G, Hippocampal neurons transfected with pSUPER vector and ARMS shRNA (DIV 7 + 7) were stained with the dendritic marker MAP2. Scale bar, 50 μm. H, Sholl analysis of transfected neurons in G. I, Hippocampal neurons from wild-type and ARMS+/− mice cultured at low density were stained with MAP2 antibody. The dendrite morphology of individual neurons was examined. Scale bar, 50 μm. J, Sholl analysis of neurons in I.

  1. The Journal of Neuroscience vol. 32 no. 24 8263-8269
