Shift from Extracellular Signal-Regulated Kinase to AKT/cAMP Response Element-Binding Protein Pathway Increases Survival-Motor-Neuron Expression in Spinal-Muscular-Atrophy-Like Mice and Patient Cells

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

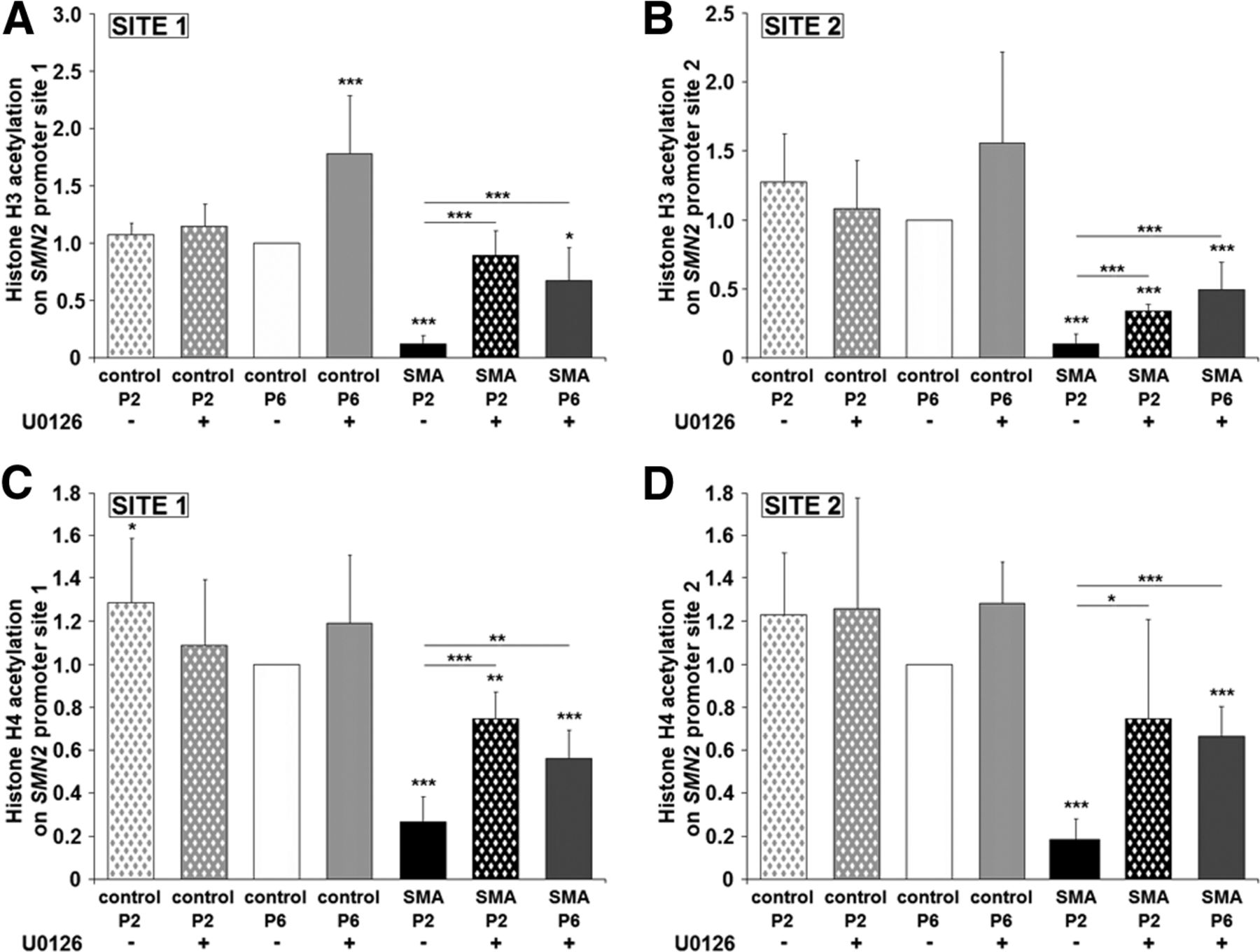

Figure 3.
Figure 3.

ERK pathway inhibition by U0126 alters H3 and H4 acetylation profiles in the spinal cord of severe SMA-like mice. A–D, ChIP analysis of histone H3 (A, B) and H4 (C, D) acetylation in the ventral lumbar spinal cord of vehicle- and U0126-treated control mice at 2 and 6 d of age, vehicle-treated SMA-like mice at 2 d of age, and U0126-treated SMA-like mice at 2 and 6 d of age (n = 9). Quantitative real-time PCR was performed to detect SMN2 promoter site 1 (A, C) and site 2 (B, D). Data are displayed as mean ± SEM. *p < 0.05, **p < 0.01, ***p < 0.001.

  1. The Journal of Neuroscience vol. 33 no. 10 4280-4294
