Elevated Correlations in Neuronal Ensembles of Mouse Auditory Cortex Following Parturition

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

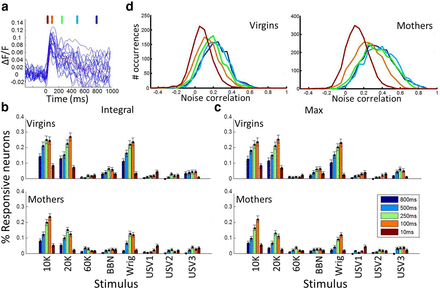

Figure 5.
Figure 5.

Responsiveness and NC measures are stable across temporal integration windows. a, Example calcium transients of one neuron evoked by multiple presentations of a single stimulus. Colored lines on top indicate the response window used in this study (250 ms, green), and four additional window sizes assessed here: 10 ms, dark brown; 100 ms, light brown; 500 ms, light blue; and 800 ms, dark blue. Color legend for all panels in c. b, Per-stimulus responsiveness in virgins (top) and mothers (bottom) assessed using different response window sizes. Error bars indicate SEM across the data. c, Same as b, but using the maximum rather than the integral over the response window. d, Distribution of NC values in virgins (left) and mothers (right) across different response window sizes.

  1. The Journal of Neuroscience vol. 33 no. 31 12851-12861
