Development of Odor Hedonics: Experience-Dependent Ontogeny of Circuits Supporting Maternal and Predator Odor Responses in Rats

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

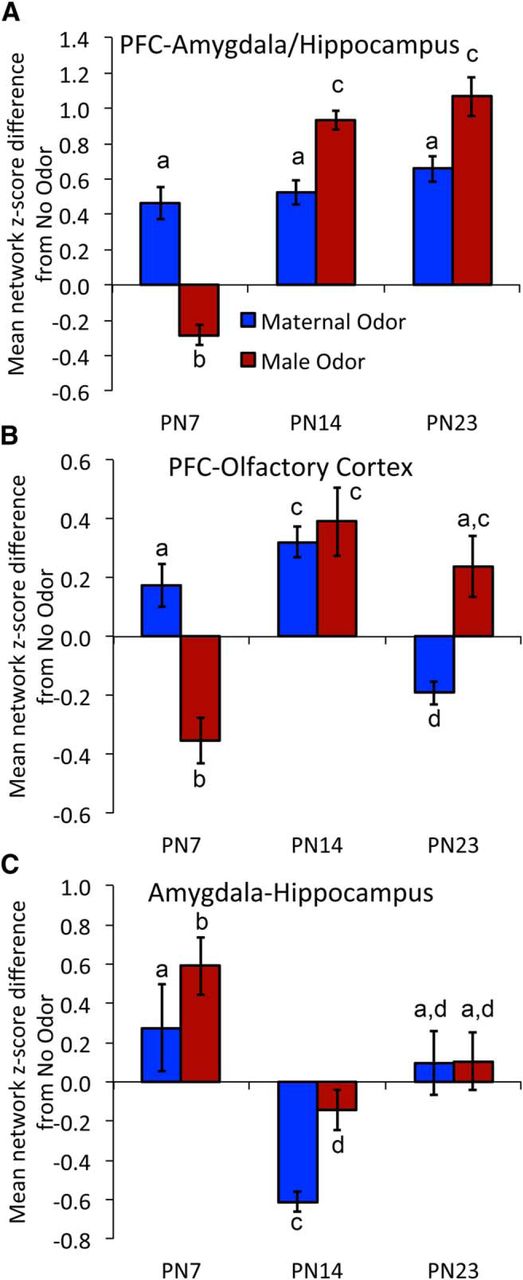

Figure 6.
Figure 6.

Mean difference in z-score-converted correlations of mean 14C 2-DG uptake between biological odors (male odor, maternal odor) and the no odor control condition in three different network modules across age. A, PFC-Amygdala/hippocampus module. B, PFC-olfactory cortex module. C, Amygdala-hippocampus module. Groups with the same alphabetic label are not significantly different from each other based on post hoc tests (p < 0.01).

  1. The Journal of Neuroscience vol. 36 no. 25 6634-6650
