Connexin-Mediated Signaling in Nonsensory Cells Is Crucial for the Development of Sensory Inner Hair Cells in the Mouse Cochlea

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 6.
Figure 6.

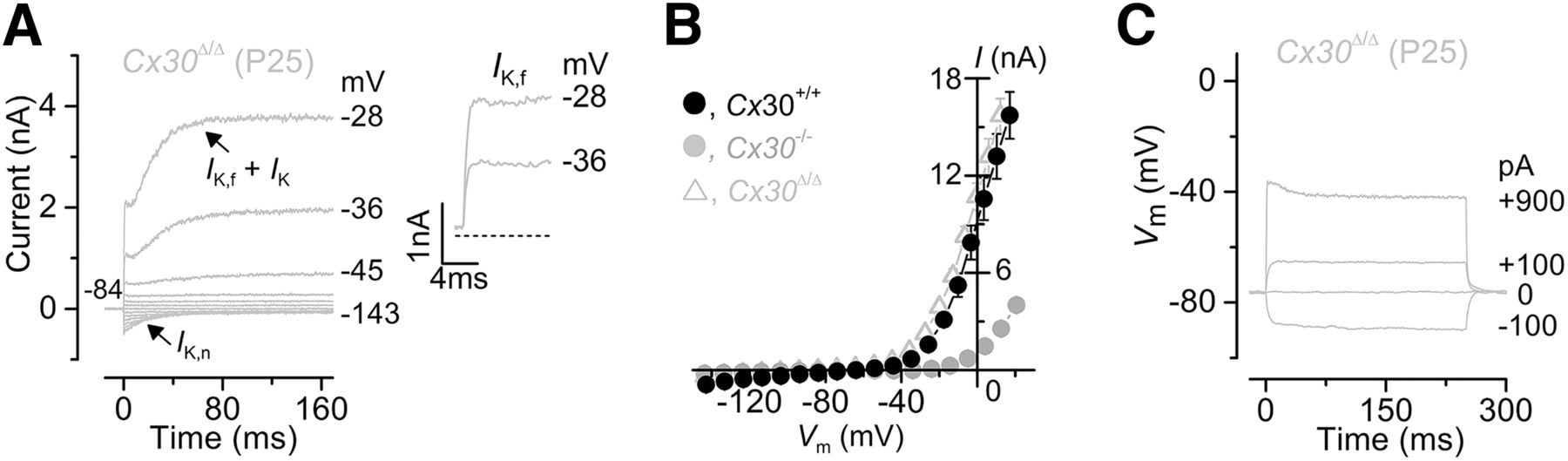

IHCs from Cx30Δ/Δ knock-out mice develop normally. A, Potassium currents recorded from mature IHCs (P25) of Cx30Δ/Δ knock-out mice using the same voltage protocol described in Figure 3. Inset, The presence of IK,f is evident. B, Current-voltage curves measured from IHCs at 2 ms from the stimulus onset of Cx30Δ/Δ (n = 6, P25), wild-type (Cx30+/+: n = 10, P16–P18), and Cx30(−/−) (Cx30−/−: n = 9, P16–P18) mice. C, Voltage responses recorded from a mature IHC of a Cx30Δ/Δ mouse, which were elicited by applying hyperpolarizing and depolarizing current injections. Recordings were performed at room temperature.

  1. The Journal of Neuroscience vol. 37 no. 2 258-268
