Interneuron NMDA Receptor Ablation Induces Hippocampus-Prefrontal Cortex Functional Hypoconnectivity after Adolescence in a Mouse Model of Schizophrenia

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

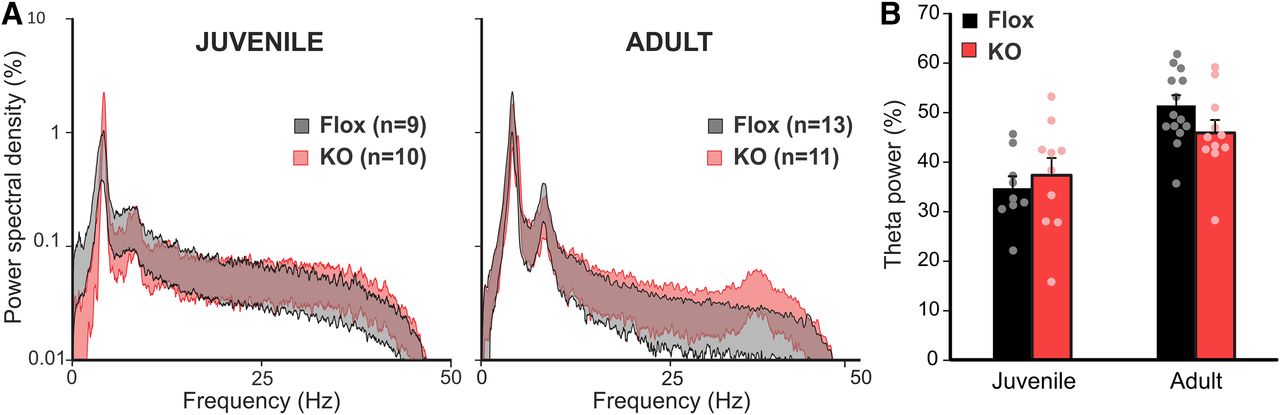

Figure 4.
Figure 4.

vHP theta oscillation is not affected in NMDAR-KO mice. A, Power spectral density analysis of LFP signals recorded from vHP in juvenile and adult control and NMDAR-KO mice during desynchronized states expressed as a percentage of the total spectral power. Data are mean ± SEM of n recorded animals. B, Power densities were calculated per band for theta oscillation (3-7 Hz). No statistically significant differences were observed across genotypes. Data are mean ± SEM. Each dot represents 1 individual animal.

  1. The Journal of Neuroscience vol. 40 no. 16 3304-3317
