Cognitive Reappraisal and Expressive Suppression Evoke Distinct Neural Connections during Interpersonal Emotion Regulation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 3.
Figure 3.

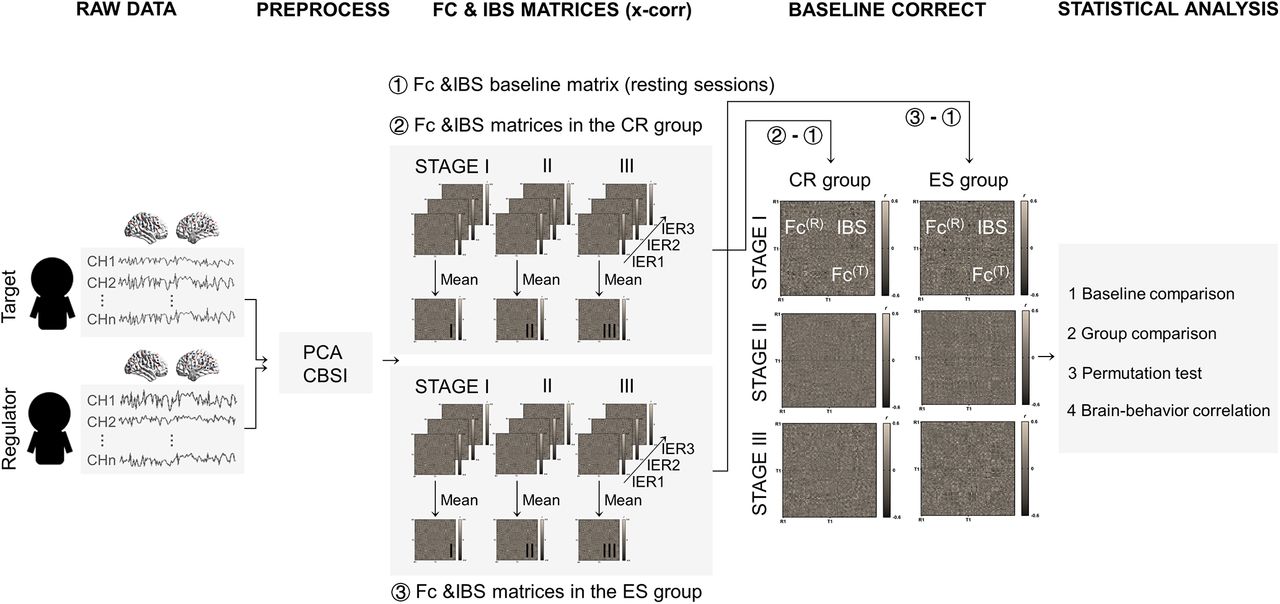

Analysis pipeline of the fNIRS data. Raw data from each participant were first preprocessed using the principal component analysis (PCA) and the correlation-based signal improvement method (CBSI). Next, each IER block was segmented into three stages. Based on this, we computed the Fc and IBS matrices for three stages, and then obtained the block-aggregated Fc and IBS matrices by averaging those in three blocks. Eventually, these Fc and IBS matrices were baseline-corrected by subtracting Fc/IBS values of the resting sessions, and submitted to the following statistical tests.

  1. The Journal of Neuroscience vol. 43 no. 49 8456-8471
